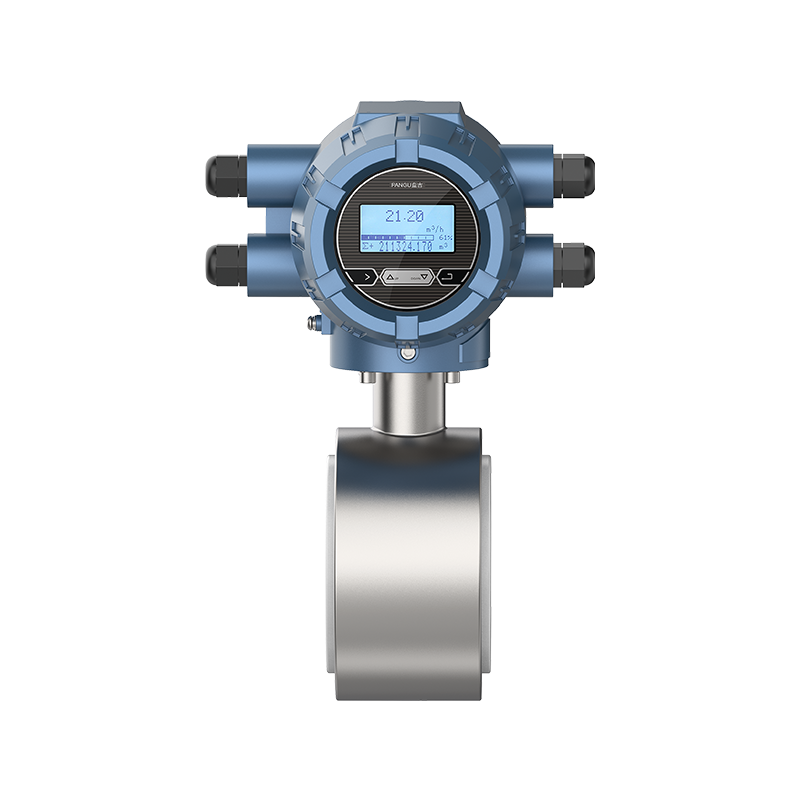

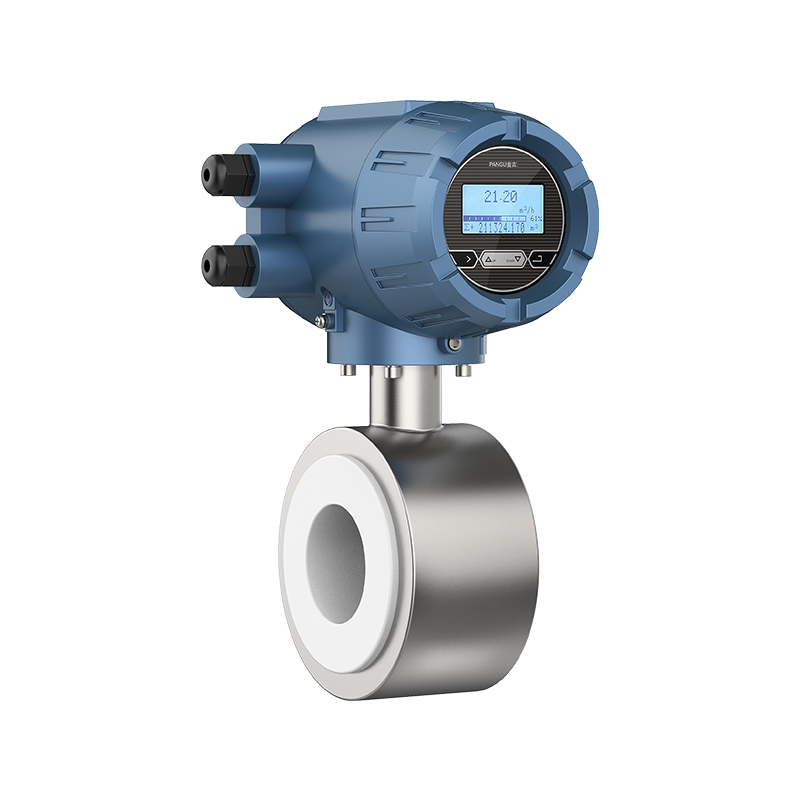

Clamp-Type Electromagnetic Flowmeter-Hangzhou Pangu Automation System Co., Ltd.

Product Details
FAQ

Key Functional Characteristics

High stability, excellent repeatability, and linearity.

Anti-interference performance: It possesses excellent electromagnetic compatibility (EMC). Structural integrity: It features high pressure resistance, excellent sealing performance, and requires no maintenance.

Zero pressure loss: Straight-through measuring tube design. Communication mode: Supports the internationally recognized MODBUS-RTU and HART communication protocols.

Industrial Applications

Widely used in petroleum, chemical, steel, food, power, paper, water treatment, water supply, and environmental protection industries.

Installation and Grounding

Advanced grounding electrodes (with grounding rings configurable according to industrial and mining applications) are employed to ensure system stability and suppress interference signals.

Protection level selection: IP68 is suitable for underground/water-related environments; IP65 is suitable for standard installation environments.

Configuration: Independent assembly form tailored for high-temperature or submerged sensor requirements.

Nominal diameter (mm)	25、32、40、50、65、80、100、125、150、200
Medium conductivity	≥30μs/cm
Nominal pressure	1.0 MPa
Degree of accuracy	±1.0% or ±0.5%
Material of lining	PFA F46
Electrode material	Stainless steel 316L、HC、Ti、Ta、Pt
Installation form	Incorporate type / Separate type
Method of connection	Grip-type, conforms to GB9119-2010

Note: Other technical indicators, such as: flow rate, range, ambient temperature, medium temperature, power supply, power consumption, explosion-proof requirements, protection level, output signal, communication, electrical connection and so on are the same as the ordinary flange-type electromagnetic flowmeter.

Q: Which markets do you mainly export to?

We have import and export rights. Our products are exported to more than 20 countries and regions, including Indonesia, the Philippines, Brazil, Australia, and more. Stable performance, reliability, and comprehensive after-sales service have won more and more repeat orders.
Q: How do you guarantee product quality?

More than 10 inspection procedures, from raw material incoming to finished goods delivery. Each paperless recorder is calibrated by automatic calibration benches; each electromagnetic flow meter is calibrated by DN15–DN1000 fully automatic flow calibration systems. Each instrument has a unique serial number for full traceability.
Q: What about your company size and team structure?

We have more than 80 employees, including 20 R&D engineers and 10 professional technicians.
Q: What is your production capacity?

We have an intelligent production base of over 6,000 ㎡, equipped with high-speed SMT lines and DN15–DN1000 fully automatic flow calibration systems. Dual testing (standard meter method + static mass method) ensures accuracy and consistency.
Q: Do you produce standard products?

No. Every product is customized and configured to meet different customer requirements.
Q: Do you support customized production?

Customized production is our core business. We can develop and produce according to your provided color codes and LOGO.
Q: What fields are your products mainly used in?

Our products are widely applied in petroleum, chemical, power, metallurgy, food, pharmaceutical, environmental protection, municipal engineering and other industries, serving thousands of industrial customers in China.
Q: What are your main products?

We focus on electromagnetic flow meters and paperless recorders, with 25 years of professional experience.
Q: Are you a factory or a trading company?

We are a direct manufacturer with independent production capacity and an international sales department, providing one-stop service from production to export.
Q: How soon can I get a reply after sending an inquiry?

We highly value every inquiry. On working days, we will reply within 0.5 hours upon receipt.
