Touch key
No need to open the coveroperation,the number ofparameters is more convenientfor repair and modification, andthe spare space for installationis small (optional).
lining materials
Lining material selection of highquality neoprene rubber, seepageproof, wear resistance, agingresistance, corrosion resistance.more reliable, the measurement ofthe medium temperature range of0 ~80'℃, can also choose the hightemperature resistance ofpolytetrafluoroethylene,themeasuring medium temperaturerange -25~120℃.
Electrode material
Stainless steel 316 electrode,corrosion resistance,to ensuremore accurate and stablemeasurement .Electrodes thatuse othermaterials can beselected too
Stainless steel 316 electrode,corrosion resistance,to ensuremore accurate and stablemeasurement .Electrodes thatuse othermaterials can beselected too
10mm tempered glass
Resistant to pressure andimpact, and able to withstanda wider range of temperaturechanges.
Resistant to pressure andimpact, and able to withstanda wider range of temperaturechanges.

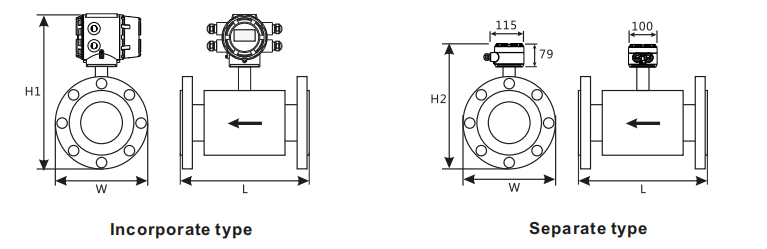

Incorporate type design
Fully sealed shell,lP65protectionclass,dustproofwaterproof suitablefor all kinds of harshenvironment .
Fully sealed shell,lP65protectionclass,dustproofwaterproof suitablefor all kinds of harshenvironment .
Full through tube desi
There is no flow resistancepart in the tube body, "zero"pressure loss, low loss andconsumption,can consumemore accurate monitoring,more energy saving
There is no flow resistancepart in the tube body, "zero"pressure loss, low loss andconsumption,can consumemore accurate monitoring,more energy saving
All metal construction
Carbon steel(stainless steeloptional),Fran connected(GB/T911 9-20 10 standard)
Carbon steel(stainless steeloptional),Fran connected(GB/T911 9-20 10 standard)
Functions parameters
Can display the measured medium in real time
Cumulative cooling capacity(kw·h、 Mw-h、 GJ)
Cumulative heatcapacity(kw·h、Mw·h、 GJ)
Cumulative flow(m³)、instantaneous flow(m'/h)inletand return water temperature (°C)and other data information;
Fault-tolerant design:In case of reverseinstallation of water inlet and return pipes,reverse installation of temperature sensors,reverse installation of table body directionand other misinstalation and reverseinstallation,there is no need to disassembleand reinstall, only need to set by the key orthe system software
Powerfallure datastorage:It can save and query the data of 18 months.The historical data saved are the cooling capacityand heat value.
Can display the current time, date,fault alarm and other statusinformation in time
Adopt Faraday electromagneticinduction law, not affected bywater quality, there is no scalingproblem, stable performance.long life.
Standard Modbus communication,BACnet communication, Bluetoothcommunication and othercommunicationmethods,easy to collect communication
At the same time, two wire system andfour wire temperature sensor aresupported, and the maximum lengthoffour wire temperature sensor can beextended to 100 meters.
Industry Application

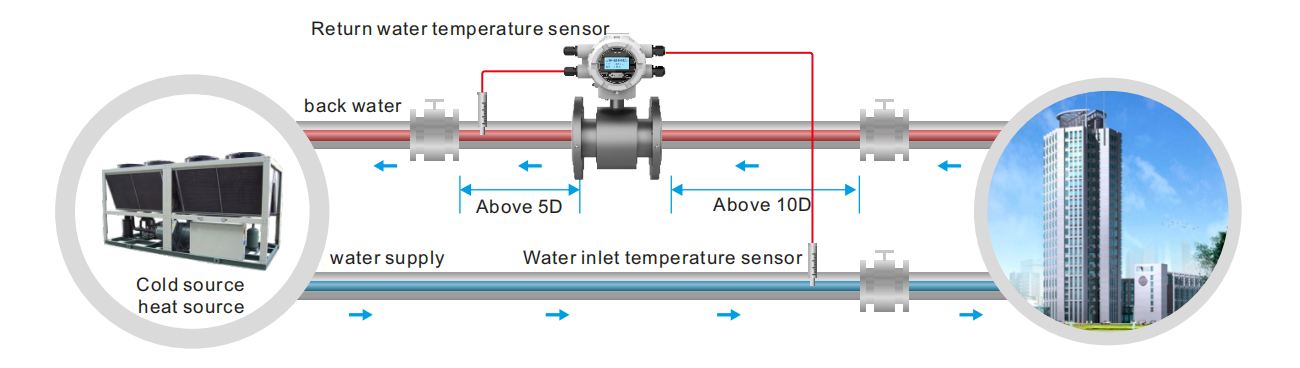

1.The minimum length of straight tube for the energy meter installation , at least 10D for upstream and 5 D fordownstream flow
2.The tube installation position ofthe energy meter should be selected as low as possible to avoid the accumulationof a large number of bubbles in the tube, which will affe ct the measurement accuracy. For example, when installingon the vertical tube, the fluid must be guaranteed to flow from bottom to top.
3.t is strictly prohibited to install the electromagnetic energy meter in the field with strong magnetic, strong electricitystrong wireless signal and other strong interference sources.
4.The lP65 protection grade of incorporate type electromagnetic energy meter should be installed indoors as far aspossible, or equipped with rain protection device and avoid in the rain and under water for a long time.
2.The tube installation position ofthe energy meter should be selected as low as possible to avoid the accumulationof a large number of bubbles in the tube, which will affe ct the measurement accuracy. For example, when installingon the vertical tube, the fluid must be guaranteed to flow from bottom to top.
3.t is strictly prohibited to install the electromagnetic energy meter in the field with strong magnetic, strong electricitystrong wireless signal and other strong interference sources.
4.The lP65 protection grade of incorporate type electromagnetic energy meter should be installed indoors as far aspossible, or equipped with rain protection device and avoid in the rain and under water for a long time.
