Synergizing Pangu Electromagnetic Flowmeters with Paperless Recorders: Precision Flow Control and Tamper-Proof Data Integrity

In modern industrial process automation, fluid flow is far more than a simple operational variable—it is a core parameter determining process efficiency, product quality, cost accounting, and environmental compliance.

However, traditional flow monitoring systems frequently suffer from two major operational risks: measurement drift at the sensor level leading to inaccurate control, and unprotected data acquisition susceptible to unauthorized tampering during audits.

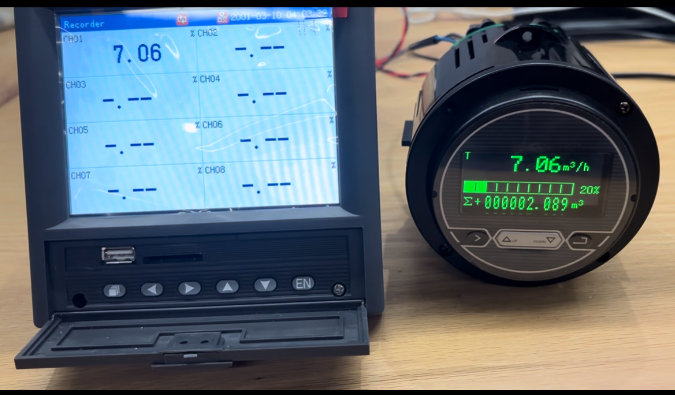

By pairing the high-precision Pangu Electromagnetic Flowmeter with an advanced Industrial Paperless Chart Recorder, process engineers can implement a seamless, end-to-end solution combining precise sensing, dynamic closed-loop control, and immutable data logging.

1. Pangu Electromagnetic Flowmeter: Precision Sensing & Rapid Response

As the primary sensing node at the front line of process control, the accuracy and immunity to interference of the flowmeter dictate the performance of the entire loop.

• Faraday's Law & Unobstructed Design: Built on Faraday’s Law of Electromagnetic Induction, Pangu flowmeters feature an obstructionless flow tube. This results in zero pressure drop and prevents clogging, making them ideal for conductive liquids, slurries, and highly corrosive media.

• Advanced DSP & High-Frequency Excitation: Incorporating state-of-the-art Digital Signal Processing (DSP) algorithms and high-frequency excitation technology, Pangu flowmeters effectively filter out pipe vibrations and fluid noise. They deliver stable 4-20mA, RS485 Modbus, or HART signals to ensure uncompromised data fidelity.

2. Closed-Loop PID Control & Multi-Channel Flow Monitoring

While the flowmeter delivers real-time measurement accuracy, the paperless chart recorder acts as the central intelligence and memory unit for the monitoring loop.

Millisecond Dynamic PID Regulation

The real-time flow signal generated by the Pangu electromagnetic flowmeter is fed directly into the paperless recorder. Utilizing its built-in PID control block, the recorder compares the input against the Set Point (SV) and outputs control signals to electric control valves or Variable Frequency Drives (VFDs), achieving millisecond-level dynamic flow stabilization.

Multi-Channel Synchronization & Visualization

The paperless recorder accepts multi-channel universal inputs, simultaneously capturing instantaneous flow rates, totalized volume, pipeline pressure, and temperature. These metrics are displayed in real time on high-resolution TFT screens via trend curves, bar graphs, and digital displays.

3. Uncompromising Data Security: Zero Tampering Risk

In strictly regulated sectors such as pharmaceuticals, chemical processing, municipal water supply, and environmental monitoring, data authenticity is non-negotiable. Traditional paper charts or unsecured software logs are vulnerable to human error and deliberate falsification.

• Proprietary Encrypted File Storage: Raw data acquired by the paperless recorder is stored internally or exported to external media (SD card/USB) in an encrypted binary format. These files cannot be opened or modified using standard text or spreadsheet editors.

• Role-Based Access & Audit Trail Log: Multi-tier user authorization (Operator, Administrator, Auditor) ensures that every configuration change, calibration adjustment, or alarm reset is logged with a timestamp and digital signature, aligning with global standards such as FDA 21 CFR Part 11.

• Power-Fail Protection & Redundant Memory: High-capacity non-volatile flash memory guarantees that historical flow logs remain intact and uncorrupted even during sudden blackout events.

4. Industrial Application Scenarios

Conclusion

The synergy between the Pangu Electromagnetic Flowmeter and the Industrial Paperless Recorder bridges the gap between precision field-level control and enterprise-level data compliance. By eliminating both control instability and data tampering risks, this combined architecture stands as a benchmark solution for modern industrial process control.
